Download operator / service manual (PDF) All Huayee manuals
| Model | HY16C |
| Operating weight | 3,527 lb |
| Engine | Kubota D722 |
| Horsepower | 14 hp |
| Dig depth | 59 in (1.5 m) |
| Turning / tail swing | 59 in tail swing |
| Hydraulic | 11 gpm class |
| Width | 43 in (1100 mm) |
| Length | 89 in (3060 mm) |
| Track width | 7 in (180 mm) |
| Fuel / hydraulic | 5 gal (19 L) |
| Max ground digging radius | 133 in (3,380 mm) |
| Max digging radius | 134 in (3,420 mm) |
*Standard-access liftgate freight in VA, WV, MD, and PA. Limited-access sites are quoted before you pay. You run a short setup check (fluids, bolts, grease) before first start. Factory warranty — we run the claim.

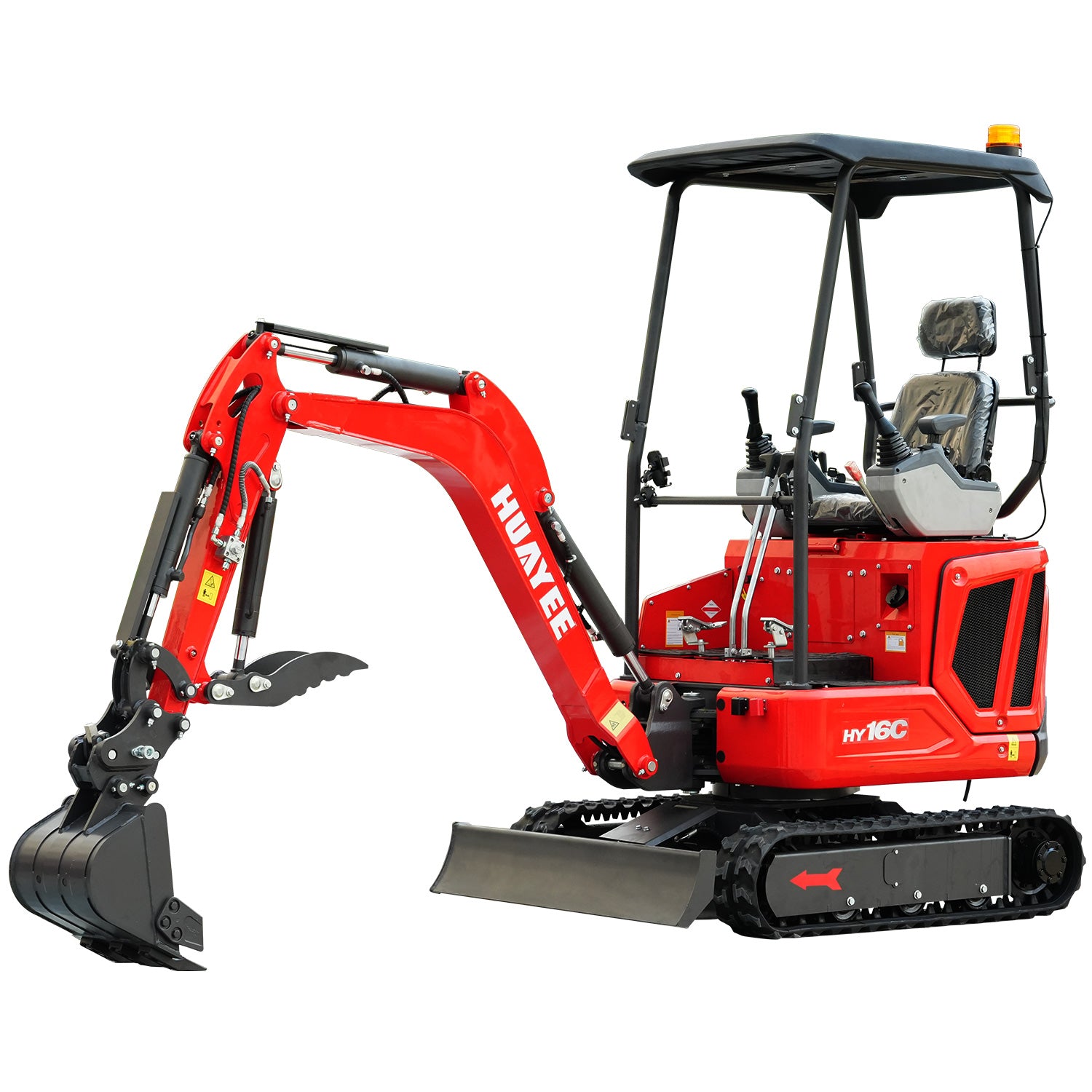

HY16C · Kubota diesel is a mini excavator with 1.6-ton class, 14 hp Kubota, and hydraulic thumb, Side-swing boom, Rubber tracks.
We set this up for grading, trenching, and land clearing on tight rural properties. Factory warranty applies — we help you run the claim and line up US-stocked parts when you need them. Kubota D722 diesel — common engine with US parts support.
Delivered driveway price includes liftgate freight to standard-access addresses in VA, WV, MD, and PA. Limited-access sites are quoted before you pay.
Check fluids, greasing points, and track tension before first start. Remove shipping braces on the boom and bucket link. Walk around with the checklist on our Setup page before you put it to work.
Yes, for standard-access addresses in VA, WV, MD, and PA. Liftgate delivery is included. Tight lanes, steep gravel, or sites a 53-foot trailer cannot reach are quoted before you pay.
Photo the crate from all sides before you sign. Note any damage on the delivery receipt (BOL). That protects you if something shifted in transit.
No forklift required. The carrier uses a liftgate to set the crate at your driveway. You will need a way to remove the machine from the crate — usually a few hours with common rigging or a small helper machine.
Use the quote form on this page or message us at sales@hollerequipment.com. We reply within one business day with delivered pricing for your ZIP.
How delivery works · Warranty & parts · Get a delivered price
